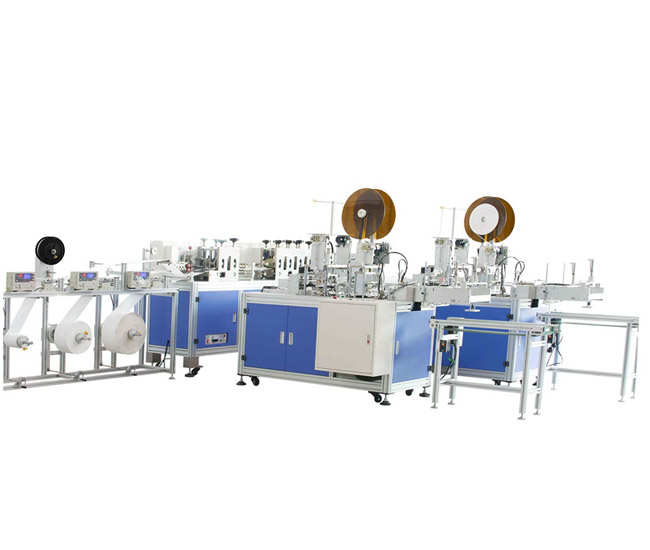

3 Layers Face Masks Production Line
Equipment Installation and Configuration Requirements:
(1) Equipment size: 6650mm (L) × 3560mm (W) × 2000mm (H);
(2) Equipment weight: about 1800kg, ground load ≤500KG / m2;
(3) Working power: equipment 220VAC ± 5 ﹪, 50HZ, rated power about 9KW;
(4) Compressed air: 0.5 ~ 0.7 MPa, the use flow rate is about 300L / min;
(5) Protection: 304# Stainless Steel protective cover for main transmission parts
(6) Operating environment: no flammable and corrosive gas, no dust.(cleanliness is not less than 100,000).
Production Line Specifications:
Standard type: 175 * 95mm
Five, equipment technical parameters:
(1) Equipment design speed: 120Pcs / minute
(2) Equipment production speed: 70-80 Pcs / minute
(3) Production efficiency: 100-110ppm;
(4) Qualification rate of equipment production: 95% (except when the incoming materials do not meet the requirements, or the employees improperly operate)
(5) Equipment failure rate: 2% (refers to the failure caused by the equipment itself)
Part2. Material Sizes
Item | Shaft QTY | Width(mm) | Roll OD (mm) | Roll ID (mm) | Weight |
Fabric | 3 | 170~200 | Φ600 | Φ76.2 | Max 15kg |
Nose Pin | 1 | 1-3 | Φ400 | Φ76.2 | Max 25kg |
Ear Loop | 4R | 3 | —— | —— | —— |
Part3. Layout
Part4. Production Line Introduction
Main Part Machine:
1. Nose Pin - Nose Pin Transmission - Nose Pin Cutting - Middle Place Nose Pin
2. Fabric - Lamination folding - Middle Place Nose Pin
1+2 : Middle Place Nose Pin - Ultrasonic compression - Main Part Cutting-Main Part Electrostatic Elimination
Dividing Machine:
Dividing into two channel - Main Part Feeding - Main Part Turn-Over - Main Part Pressed and Feeding
Ear Loop Welding Machine:
Ear Loop - Ear Loop Cutting - Ear Loop Fixed On Main Part -Ear Loop Combined with Main Part - Masks
